Unify - Siemens HiCom-HiPath 3000 - IP connection

These instructions help you configure your Siemens HiCom/HiPath phone system to work with TIM Plus. Contact your system maintainer if you are not familiar with the configuration of your PBX.

Support files​

Ensure the following support files exist in the /config/ folder of the TIM Plus application:

Siemens.TDS
Siemens HiCom-HiPath.TDT

Contents​

Configuring the SMDR output​

info

You may need to purchase a license to enable SMDR on this PBX. Please speak to your system maintainer if you are unsure.

By default, the SMDR output of a Siemens HiCom/HiPath phone system is not enabled. Contact your system maintainer to enable it for incoming, outgoing and internal calls.

Configuring TIM Plus​

Follow the steps below to configure TIM Plus to connect to your Siemens HiCom-HiPath:

  1. Click on the Directory tab.
  2. If you don't have a site set up, press Add and select PBX from the drop-down menu. In the dialogue window, name your site and then select Add.

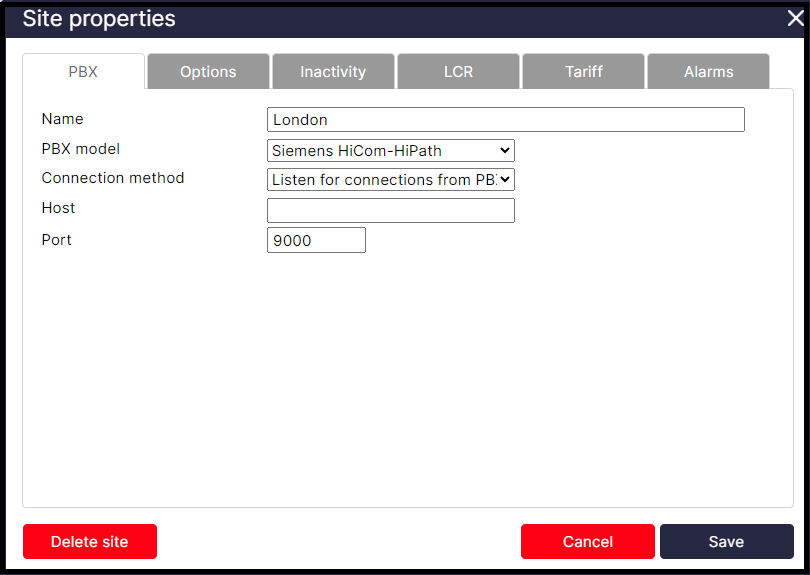

siemens_hicom_hipath_1

  1. In the Site Properties window, select Siemens HiCom-HiPath from the PBX model drop-down list.
  2. In the Connection method field, select Listen for connections from PBX from the drop-down list.
  3. Leave the Host field blank.
  4. In the Port field, enter 9000.
  5. Click on the Options tab and tick the Keep a local backup of any data tickbox, as shown below

TIM Plus PBX backup options

  1. Click on the Save button to apply the settings.
